MOBILE TABLE VERTICAL BROACHING MACHINE
Type: Machine with electro-mechanic drive with technology and positioning with
absolute encoders. Machine aimed essentially at key cutting processing.

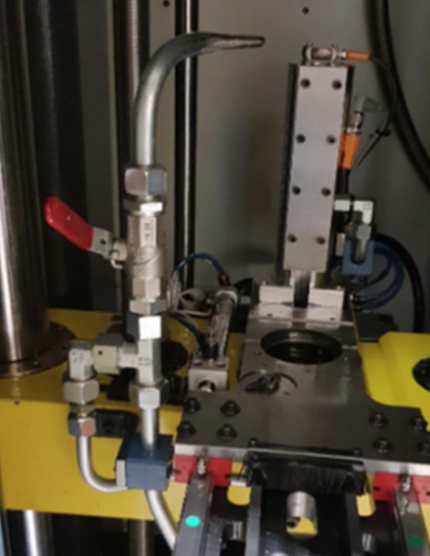

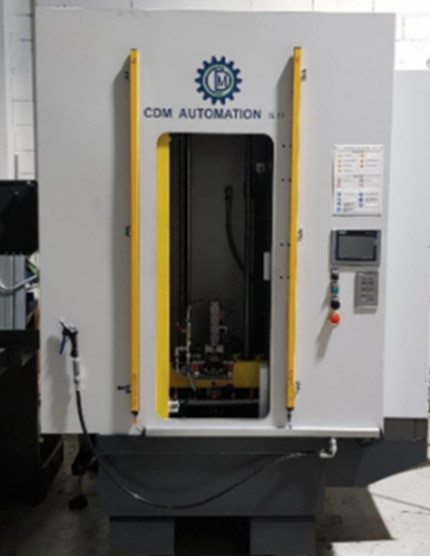

MODEL ECOVIM-SA 4-1250-320
- CHARACTERISTICS: POWER 4TONS
- STROKE: 1250MM
- BROACHING SPEED: From1 to 6 mt/min
- RETURN SPEED: From1 to20mt/min
- SIZE AND BUILD STROKES: POWER FROM 4 TO 8 TONS – STROKES FROM 1000 TO 1400mm
- ACCESSORIES: The machine can be equipped with a broach lifting system to
automate the system. The group allows to position the broach which will not be guided upwards during the work cycle.

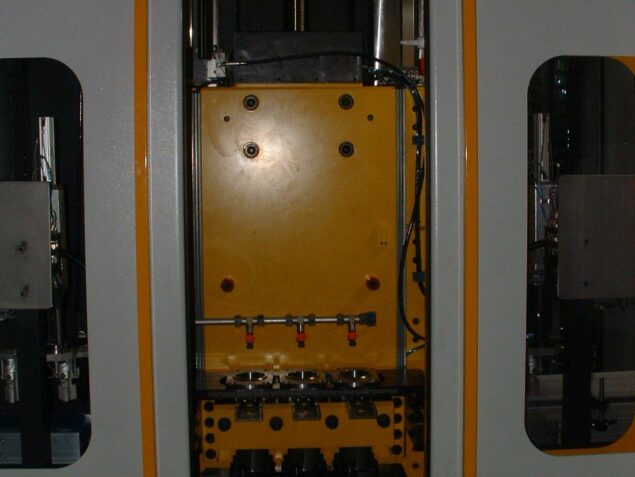

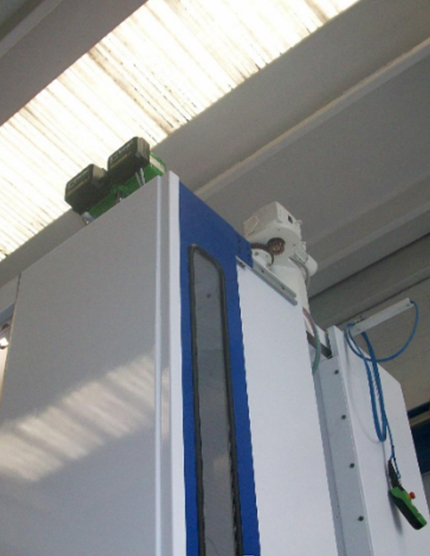

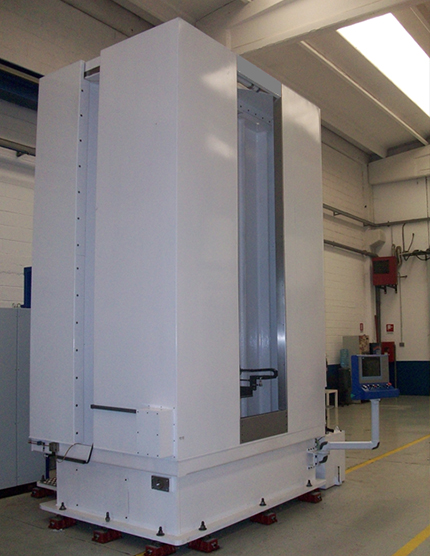

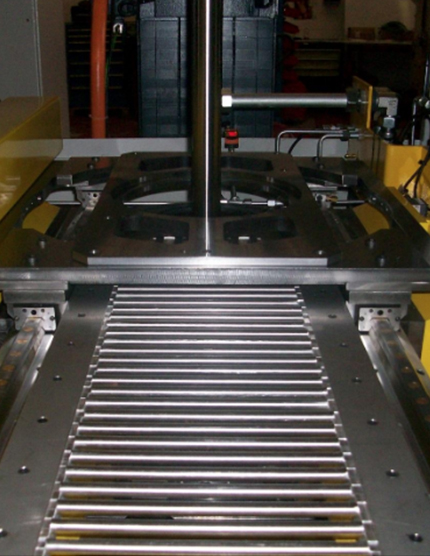

MODEL VIM DM- 40-2000-500
MOBILE TABLE VERTICAL BROACHING MACHINE
Type: Machine with mechanical drive and positioning with absolute encoders.
- CHARACTERISTICS: POWER 40TONS
- STROKE: 2000MM
- BROACHING SPEED: From1 to 6 mt/min
- RETURN SPEED: From1 to20mt/min
- SIZE AND BUILD STROKES: POWER FROM 25 TO 63 TONS – STROKES FROM 1600 TO 2500mm
- ACCESSORIES: Application of motorised hoist for the removal and insertion of the tool into the machine.

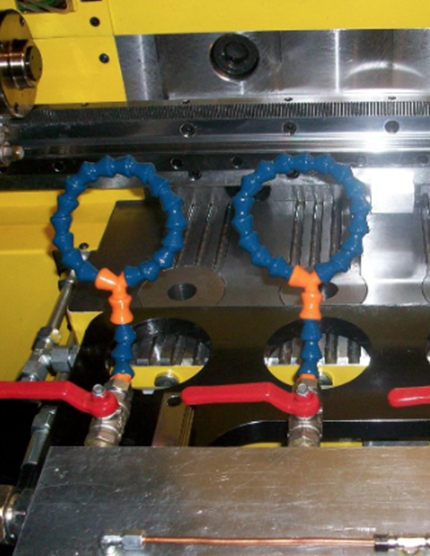

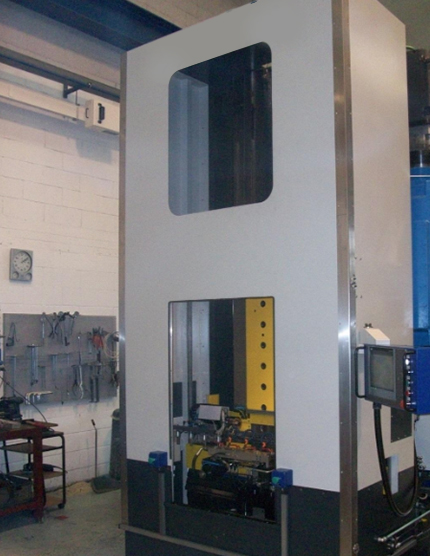

MODEL VIM- 20-2000-500 HS
MOBILE TABLE VERTICAL BROACHING MACHINE
Type: Machine with mechanical drive and positioning with absolute encoders.
Special execution with high dynamics and working speed. 4-stations machine for high production.
- CHARACTERISTICS: POWER 20TONS
- STROKE: 2000MM
- BROACHING SPEED: From 1 to 27 mt/min
- RETURN SPEED: From 1 to 30mt/min
- SIZE AND BUILD STROKES: POWER FROM 6 TO 25 TONS –
STROKES FROM 1000 TO 2000mm - ACCESSORIES: POWERS FROM 6 TO 20 TONS – STROKES FROM 1600 TO 2000mm

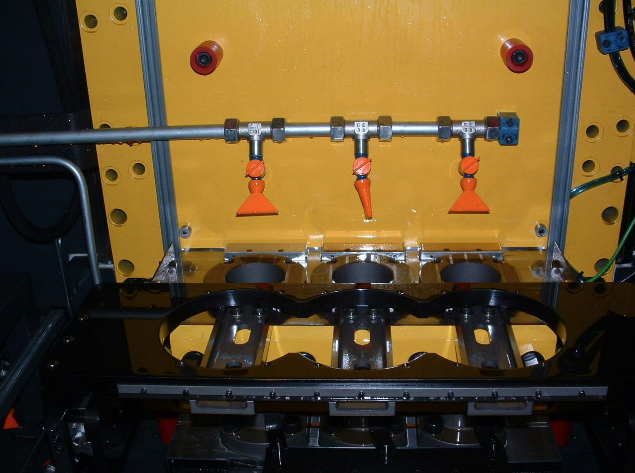

MODEL VIM- 25-1600-500
MOBILE TABLE VERTICAL BROACHING MACHINE
Type: Machine with mechanical drive and positioning with absolute encoders.
- CHARACTERISTICS: POWER 20TONS
- STROKE: 2000MM
- BROACHING SPEED: From 1 to 8 mt/min
- RETURN SPEED: From1 to20mt/min
- SIZE AND BUILD STROKES: STROKES FROM 6 TO 25 TONS – STROKES FROM 1250 TO 2500 mm

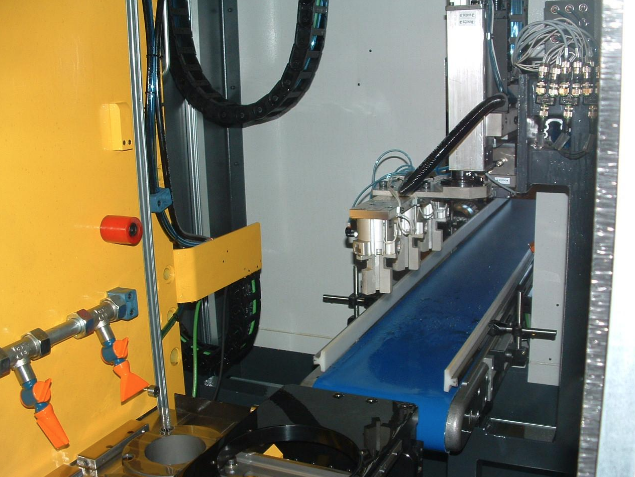

- ACCESSORIES: Example of in-line automatic loader for 3 Broaching stations

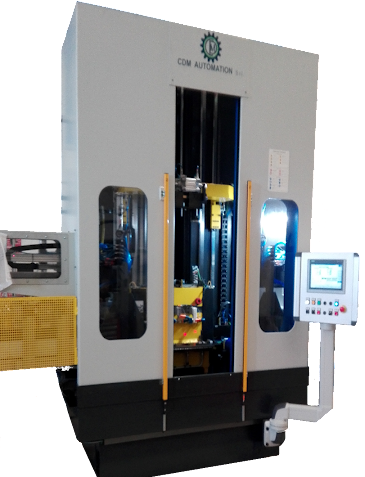

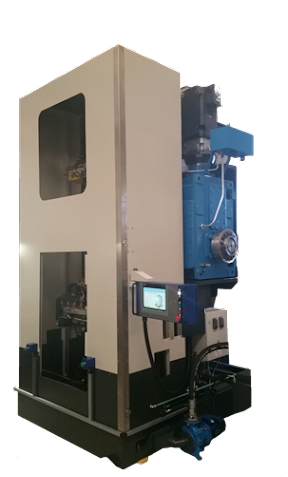

MODEL VIM - M
The particularity of the machine lies in the innovative mechanical transmission system with recirculating satellite roller screw and single motor for the traction slide and with gearmotor and chains for the broach lifter slide. The management of the positions takes place by means of absolute encoders.
MACHINE ADVANTAGES:
- HIGH PRODUCTIVITY WITH REDUCED MAINTENANCE
- MACHINE EQUIPMENT SPEED AND AUTOMATIC BROACH CHANGE
- REAL TIME CONTROL OF TOOL CUTTING PER KG
- QUALITY COMPONENTS
- WITHOUT NEED FOR A HOLE IN THE FLOOR
| Machine Type | POWER | STROKE | TABLE | STATIONS | BROACHING SPEED | RETURN SPEED |
| VIM-M | 4 TON | 800…..1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..18Mt/min |
| VIM-M | 8 TON | 800…..1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..18Mt/min |
| VIM-M | 10 TON | 1000….1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..18Mt/min |
| VIM-M | 16 TON | 1250….2000mm | 400…500m | 1….3 | 0,5……8Mt/min | 1…..15Mt/min |
| VIM-M | 25 TON | 1250….2500mm | 400…630mm | 1….3 | 0,5……6Mt/min | 1…..15Mt/min |
| VIM-M | 40 TON | 2000….2500mm | 500…800mm | 1….3 | 0,5……6Mt/min | 1…..15Mt/min |
| VIM-M | 63 TON | 2000….2750mm | 500…800mm | 1….3 | 0,5……4Mt/min | 1…..12Mt/min |
SPECIAL VERSION:
- SPECIAL VERSION FOR
- HIGH SPEED BROACHING
- TO 27 Mt/Min AT 20 TONN.
